A ) Lakshmi Rieter Ring Frame and Speed Frame

Frame

Model

Spindle Guage

Length





Lakshmi Rieter Ring Frame and Speed Frame

Ring Frame

G-5/1

70 mm

1680 mm

Ring Frame

LR - 6

70 mm

1680 mm

Ring Frame

G-5/1

75 mm

1800mm

Speed Frame

LF-1400


1460 mm

Ring Frame

H 0/1


2160 mm


B ) Rieter Ring Frame Model H 6 Length of Hose as per customer requirement.
Hose ID 30mm X OD 35mm (+0/-1mm )

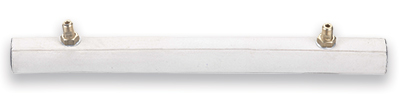

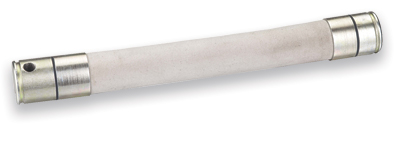

C ) Air Pressure Hose for Lakshmi Rieter Draw Frame, Comber and Ring Frame Hose ID 28mm X OD 33mm (+0/-1mm)

Machine

Cat No.

Length


Sliver Lap Machine 616 530 mm & 550 mm Rieter Ring Frame Model H 6 Length of Hose as per customer requirement
For Ribbon Lap Machine 1158 3078 mm
Rieter Comber E 7 and E 7/2 model 741 935 3680 mm 290 mm or 300 mm
Comber E 7/4
1112 3645 mm
830 290 mm or 300 mm
Rieter Drawing DO/4 Model 639 2218 mm
640 2163 mm
641 2514 mm

2783 mm

2270 mm

2240 mm
Lakshmi Rieter Drawing Frame DO/2B 503 1270 mm 1st Hose
504 1240 mm/1248 mm 2nd Hose
505 1548 mm 3rd Hose

Machine

Spindle

Gauge

Length

Lakshmi Rieter machinery

I) Ring Frame

D.J.5 Running No. 2115

372 75 mm 14066 mm
384 75 mm 14516 mm
400 70 mm 14116 mm
408 75 mm 15416 mm
416 70 mm 14676 mm
420 75 mm 15866 mm
432 70 mm 15236 mm
444 75 mm 16766 mm
448
15796 mm
464
16466 mm
480 70 mm 16916 mm
512
18036 mm

Machine

Cat No

Spindle

Frame

Lakshmi Rieter machinery

II) Speed Frame


8 565 mm
1624 96 11740 mm

108 13030 mm

120 14680 mm

4/0512495/0 1460 mm
